LokhuUmshini Wokushisela we-Servoiyimpumelelo emkhakheni we-resistance welding. Ngokungafani nokokusebenza kwe-pneumatic evamile, ifinyelela ukulawula kwedijithali kwenqubo yokucindezela i-electrode ngokusebenzisa-isistimu ye-loop evaliwe yama-servo motors nezikulufu zebhola. Le ndlela "yokushayela-kagesi{4}}ngaphezu{4}}kumoya" ixazulula ngokuphelele indawo yobuhlungu embonini yengcindezi engazinzile kanye nokungaguquguquki kahle kokushisela kumapuleti ayinkimbinkimbi (afana ne-aluminium namashidi anamathani).

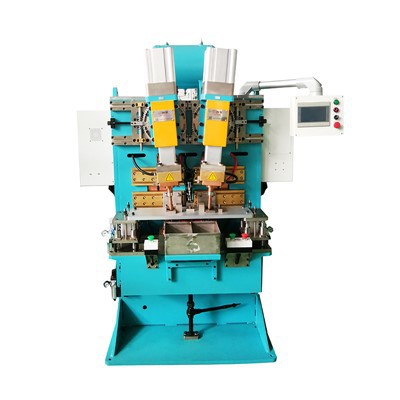

Servo Welding Machine

Izinzuzo Eziyinhloko Zezobuchwepheshe

Ukulungiselelwa Kwejika Lokucindezela Kwedijithali

I-servo drive ivumela ukusetha kwamahhala kwejika lokucindezela, ngomfutho we-electrode olungiseka kahle ngaphakathi kwe-1 kN - 10 kN.

1000 Hz MFDC Ukulawula Kwamanje

Amandla kagesi-owakhelwe ngaphakathi kwe-MFDC afaka ukunemba kokukhishwayo kwamanje okungu-±1%.

I-Micron-level Displacement Resolution

Ifakwe isifaki khodi esinemba okuphezulu esingu-17{{1}bit, ukulungiswa kwendawo kufinyelela ku-0.001 mm.

{0}Isivinini Sokukhiqiza Esiphezulu

Umjikelezo wokushisela wephuzu elilodwa-elilungiselelwe cishe cishe amasekhondi angu-0.5.

Ukuhambelana Kwezinto Nezinkambu Zokusebenza

IUmshini Wokushisela we-Servoyakhelwe ukuguquguquka kuyo yonke imikhakha-edingeka kakhulu:

Insimbi Yekhabhoni	Q235, Q345, SPCC (0.5 mm – 3 mm).
Insimbi engagqwali	SUS304, SUS301, SUS430 (0.4 mm – 2.5 mm).
Aluminiyamu Alloys	5052, 6061, 6063 (0.8 mm - 2 mm).
I-Copper Alloys	T2 Copper, C11000, C26000 Brass (0.5 mm - 2 mm).

Izicelo Zemboni

Izingxenye Zezimoto

Amafreyimu ezihlalo, abakaki bebhande lezihlalo, nezinsimbi zokuqinisa iminyango.

Ibhethri le-EV Nesitoreji

Amathebhu ebhethri, izakhiwo zemojuli, kanyeIbha yebhasiukuxhumana.

Ugesi & Hardware

Amabha ethusi, amatheminali, amahinge, namafreyimu ensimbi.

Inani Lekhasimende: Ukuxazulula{{0}Izinselele Zomhlaba Zangempela

Susa i-Weld Spatter

Ngokusebenzisa ijika lokucindezela elihlelekayo, ungakwazi ukuthuthukisa izigaba zokuminyanisa nezokushisela ukuze uvimbele ukuxoshwa okubangelwa ukwehla kwengcindezi engazelelwe noma amandla amaningi ngokweqile.

Ukulandelelwa Kwekhwalithi

Ngesistimu yokuqapha ukususwa kokuzithandela (ukunemba okungu-0.01 mm), ungakwazi ukulandelela "ukugoqa kwe-nugget" kwakho konke ukushisela okukodwa. Le datha inikeza ukuqinisekiswa okungu-100% kokuthi i-weld ifinyelele ukujula okudingekayo.

Izindleko Zokulungisa Ezehlisiwe

Ukupholisa amanzi okunembayo (i-10℃- 30℃) namandla okuthonya alawulwayo kwandisa kakhulu impilo yama-electrode akho e-CuCrZr, kunciphisa imvamisa yokugqoka nokushintshwa.

Izitifiketi

Sisebenzele amakhasimende angaphezu kuka-5,{1}} emhlabeni wonke, futhi{2}}ozakwethu besikhathi eside bahlanganisa i-Tesla, BYD, ne-Siemens.

Ngaphezu kwezinkampani 50+ ze-Fortune 500.

Ozakwethu

40+ Amalungelo obunikazi kanye namalungelo angu-2 e-software Kazwelonke, 10,000㎡ Imboni enabasebenzi abanekhono 100+.

Kungani Usebenzisana Nathi?

Intelligence ku-Core

Isistimu yethu yokulawula esekelwe ku-PLC{0}igcina amasethi angu-30–100 ezinhlelo zokushisela, okuvumela ukushintsha okusheshayo phakathi kwama-workpiece ahlukene.

Okuzenzakalelayo Okugcwele Kulungele

Ifakwe nezindawo zokusebenzelana ezijwayelekile ze-I/O kanye ne-0.5–0.7 MPa yomoya wokulungisa okuzenzakalelayo, imishini yethu iklanyelwe ukuhlanganisa ngaphandle komthungo kumaseli erobhothi.

Ukusebenza Okuqinisekisiwe

Ama-transformer ethu asebenza kahle ngo-90% -95%, aqinisekisa ukuthi izindleko zakho zamandla zihlala ziphansi kuyilapho okukhiphayo kuhlala kuphezulu.

FAQ

Servo Welding Machine

01.Ingabe lo mshini wokushisela i-Servo ungaphatha{1}}izinto zokusebenza eziphezulu njengethusi?

Yebo. Ngethusi (T2 noma i-C11000), sincoma ukusebenzisa amandla ethu e-MFDC noma i-Capacitor Discharge ukuze ulethe amandla aphezulu aphezulu (afika ku-40 kA) adingekayo ukuze kube nebhondi eqinile.

02.Ngikugwema kanjani ukushisela okubuthakathaka (ama-cold weld)?

Lokhu kuvame ukubangelwa ukucindezela okunganele. Ngesistimu yethu, ungakhuphula ingcindezi ehleliwe futhi uqaphe ukususwa ukuze uqinisekise ukuhlangana okufanele.

03.Ingabe uhlelo lokupholisa amanzi luyisibopho?

Yebo. Ukuze kuvikelwe i-transformer nama-electrode, izinga lokugeleza lika-8 L/min no-4 L/min ngokulandelana liyadingeka ukuze kugcinwe izinga lokushisa eliphakathi kuka-10℃no-30 degree.

04.Isikulufu sebhola sidinga kangaki ukunakekelwa?

Sincoma ukuthi uhlole futhi ugcobe isikulufu sebhola masonto onke, kanye nokwenza ukuhlola okugcwele kwe-servo motor kanye nesistimu yokupholisa nyanga zonke.

05.Ngingakwazi yini ukubona ukuthi i-weld yehlulekile ngesikhathi sokukhiqiza?

Yebo. Ngokukhetha isistimu yethu yokuqapha, umshini ulandelela okwamanje, i-voltage, nokugudluzwa kwayo yonke i-weld, ixwayisa opharetha uma amapharamitha awela ngaphandle kokubekezelela okusethiwe.
