I-HF{{0}WX-FWUmshini Wokuvala Ngocingo We-Ultrasonicyakhelwe ukuvala futhi yakhe ingxenye yokugcina yezintambo zethusi kanye nezingxenye ze-tubular conductive ngokusebenzisa-ubuchwepheshe be-frequency ultrasonic vibration.
Ngokungafani nezindlela zokuhlanganisa ezisekelwe ekushiseni{0}ezisekelwe, i-ultrasonic wire sealing kusebenzisa amandla okudlidliza asetshenziswayo kanye nokucindezela okulawulwayo ukuze kwakheke uxhumano oluzinzile ngaphandle kokuncibilikisa isisekelo. Le nqubo isiza ukunciphisa ithonya elishisayo kucezu lokusebenza ngenkathi ithuthukisa ukungaguquguquki ekukhiqizeni okuphindaphindiwe.
Kungani Kusetshenziswa I-Ultrasonic Wire Sealing Technology?
Ezinqubweni eziningi zokukhiqiza izingxenye zikagesi kanye ne-conductive, ukwelashwa kokugcina kwezintambo noma amashubhu ethusi kuthinta ngokuqondile ukusebenza kukagesi, amandla emishini, nokuvumelana kokukhiqiza.
Izindlela zendabuko ezifana ne-soldering noma ukubopha ngomshini zingase zethule izinselele ezimbalwa:
- Ukushisa okukhiqizwa phakathi ne-soldering kungathinta izinto zokufakelwa noma izingxenye eziseduze.
- Izindlela zokuxhuma imishini zincike kakhulu ekucindezelweni kothintana naye futhi zingase zibe nokuhluka kokusebenza ngokuhamba kwesikhathi.
- Izindlela zokucubungula ngesandla zinzima ukugcina ikhwalithi engaguquki ngesikhathi sokukhiqiza ngobuningi.
Ukuvalwa kwezintambo ze-Ultra kunikeza enye indlela ngokusebenzisa-amandla okudlidliza aphezulu ukuze udale uxhumano oluqinile- olunamandla aphansi okushisa kanye nenqubo engcono yokuphindaphinda.
Isebenza kanjani i-HF{{0}WX-FW Ultrasonic Wire Sealing Machine
Umshini usebenzisa ukudlidliza kwe-ultrasonic kuhlangene nokucindezela okulawulwayo ukucubungula ingxenye yokugcina yezintambo zethusi noma amashubhu.
Ngesikhathi senqubo yokushisela
I-workpiece ibekwe ngaphakathi kwe-welding fixture eyenziwe ngokwezifiso
I-ultrasonic horn isebenzisa-amandla okudlidliza aphezulu endaweni yokuxhumana
Ukungqubuzana phakathi kwezindawo zensimbi kususa i-oxide engaphezulu futhi kuthuthukisa izimo zokuxhumana
Ngaphansi kwengcindezi eqhubekayo, izixhumanisi zensimbi zakha isakhiwo esibophekile esizinzile
Ngoba inqubo ayincikile ekuncibilikiseni okokusebenza, inganciphisa ukuwohloka futhi igcine izici zangempela zezinto zokuqhuba.
Izicelo ze-Ultrasonic Wire Sealing Machine
Ukuvalwa kwe-Copper Tube kanye Nokugcina Ukwakhiwa |
I-HF{{0}I-WX-I-FW ifanele izinhlelo zokusebenza zokuvala ishubhu ekugcineni lapho kuvaleka okuthembekile kanye nokusebenza kukagesi kuyadingeka. Amashubhu e-Copper asetshenziswa kakhulu ezinhlelweni zikagesi, ezingxenyeni zokuphatha ezishisayo, kanye nemihlangano ekhethekile yokuqhuba. Ngesikhathi sokukhiqiza, ukuphela kweshubhu kuvame ukudinga ukuvalwa noma ukucutshungulwa ngenkathi kugcinwa ubuqotho bezinto ezibonakalayo. Ukuvalwa kwe-Ultrasonic kunikeza inqubo elawulwayo egwema ukufaka ukushisa ngokweqile futhi kusize ukugcina ikhwalithi yomkhiqizo engaguquki. |
Izintambo Zezimoto Nezinsimbi zikagesi |
Amasistimu kagesi wezimoto zanamuhla aqukethe izintambo eziningi zezintambo kanye nezingxenye zokuxhuma ezidinga izindlela ezizinzile zokucubungula. Ubuchwepheshe bokuvalwa kwentambo be-Ultrasonic bufanele izinhlelo zokusebenza lapho abakhiqizi bedinga:
Lokhu kuyenza ifaneleke izingxenye zikagesi ezizihambelayo kanye nezinhlaka ezintsha eziphathelene nemoto yamandla -ehlobene. |
Izisetshenziswa zikagesi zezimboni |
Imikhiqizo kagesi yezimboni ivame ukudinga ukuxhumana okuthembekile okuthembekile nempilo ende yesevisi. Kulezi zinhlelo zokusebenza, ukubekwa uphawu kwe-ultrasonic kusiza abakhiqizi bathuthukise ukungaguquguquki kokukhiqiza ngenkathi kunciphisa ukuhluka okubangelwa ukucubungula ngesandla. |
Izingxenye Ze-elekthronikhi kanye Nokunemba Kokuziphatha |
Ezingxenyeni ezincane zokuqhuba lapho ukulawula ukushisa kubalulekile, ukucutshungulwa kwe-ultrasonic kunikeza esinye isisombululo ngokunciphisa umthelela oshisayo uma kuqhathaniswa nezindlela zendabuko zokushisela. |
Izinzuzo Eziyinhloko Zomshini Wokuvala Ngezintambo We-Ultrasonic
Okuqinile Okuqinile-Uxhumano Lwesimo Ngaphandle Kwempahla Yesoda Eyengeziwe
Inqubo ye-welding ye-ultrasonic idala ukubopha ngokusebenzisa amandla okudlidliza nokucindezela kunezinto zokugcwalisa zangaphandle.
Lokhu kuqeda isidingo sezinto ze-solder futhi kunciphisa izinkinga ezingaba khona ezibangelwa ukuguga kwe-solder, ukungcola, noma izinyathelo ezengeziwe zokucubungula.
01
Ithonya Eliphansi Lokushisa ku-Workpiece
Ngenxa yokuthi ukushisela nge-ultrasonic akudingi ukuncibilika-okuphezulu kwezinga lokushisa, indawo ethinteke ekushiseni inciphe kakhulu.
Lokhu kubaluleke kakhulu ezingxenyeni lapho izinto ezizungezile, izendlalelo zokuvikela, noma ukunemba kobukhulu kufanele kuvikelwe.
02
Ifanele ukukhiqizwa kweqoqo elivumelanayo
Emkhiqizweni omkhulu, ukuvumelana kwe-welding kubaluleke kakhulu kunokwenza{0}}okukodwa.
I-HF{{0}I-WX-I-FW isebenzisa amapharamitha e-ultrasonic alawulwayo ukuze igcine imiphumela yokushisela ezinzile kuyo yonke imijikelezo yokukhiqiza ephindaphindiwe, isiza abakhiqizi behlise ukuhlukahluka kwekhwalithi.
03
Ngokwezifiso Uphondo Lwe-Welding kanye ne-Fixture Design
Amadayimitha ocingo ahlukene kanye nezakhiwo zomkhiqizo zidinga izimo ezihlukene zokudlulisa amandla.
Umshini usekela izimpondo zokushisela ezenziwe ngokwezifiso kanye nezinto ezilungiswayo ngokuya ngezidingo zomkhiqizo wekhasimende, ukuqinisekisa izimo ezingcono zokuxhumana kanye nokuzinza kwe-welding.
04
I-AI-Isizwa ngekhwalithi yokushisela kanye Nokuthuthukisa Ipharamitha
Uhlelo lungahlanganisa imisebenzi yokuqapha ehlakaniphile ukuze kuqoqwe idatha yokushisela ngesikhathi sokusebenza.
Ngokuhlaziywa kwedatha, ikhwalithi yokushisela ingahlolwa, futhi amapharamitha wenqubo angathuthukiswa ngokusekelwe kumpendulo yokukhiqiza.
Lokhu kusiza abakhiqizi bathuthukise ukuzinza kwenqubo futhi banciphise ukuncika ekulungiseni okwenziwa ngesandla.
05
Imingcele Yezobuchwepheshe
| Into | Ukucaciswa |
|---|---|
| Imodeli | I-HF{{0}WX-FW |
| Igama lesisetshenziswa | Umshini Wokuvala Ngocingo We-Ultrasonic |
| Ultrasonic Frequency | 20kHz |
| Amandla Okukhiphayo | 3kw |
| I-Voltage elinganiselwe | 220V / 50Hz |
| I-Welding Range | Φ2 - Φ10 |
| Impahla yokushisela | I-Copper wire / ithubhu yethusi nezinye izinto zokuhambisa |
| I-Welding Fixture | Kwenziwe ngokwezifiso ngokwezidingo zomkhiqizo |
Kungani Khetha i-HAIFEI?
Ubunjiniyela{{0}Izixazululo zokushisela ezisekelwe ku-Welding
I-HAIFEI ithuthukisa imishini yokushisela ye-ultrasonic ngokusekelwe ezidingweni zangempela zomkhiqizo kunokuhlinzeka ngemishini evamile kuphela.
Ukuqinisekiswa Kwenqubo Ngaphambi Kokukhiqiza
Ukuhlolwa kwesampula nokuhlolwa kwenqubo kusiza amakhasimende ukuthi aqinisekise ukuthi kungenzeka yini ukushisela ngaphambi kokutshala impahla.
Amandla Okwenza ngokwezifiso
Izakhiwo zocingo ezihlukene zidinga izimo zokushisela ezihlukene. I-HAIFEI ihlinzeka ngezimpondo ezenziwe ngezifiso kanye nezakhiwo ukuze zifane nezinhlelo zokusebenza ezithile.
-Usekelo Lwesikhathi Eside Lwezobuchwepheshe
Kusukela ekukhethweni kwemishini kuya ekusetshenzisweni kokukhiqiza, i-HAIFEI ihlinzeka ngosizo lwezobuchwepheshe kuwo wonke umjikelezo wokuphila wephrojekthi.

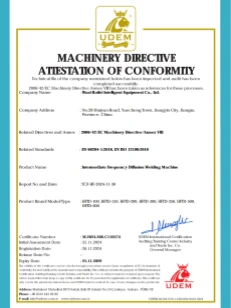

Izitifiketi
40+ Amalungelo obunikazi kanye namalungelo angu-2 e-Software Kazwelonke, 10,000㎡ Imboni enabasebenzi abanekhono 100+.
Ozakwethu
Sisebenzele amakhasimende angaphezu kuka-5,{1}} emhlabeni wonke, futhi ozakwethu{2}}besikhathi eside bahlanganisa i-Tesla, BYD, ne-Siemens.Ngaphezu 50+ kwezinkampani ze-Fortune 500.
Vakashela iKlayenti lase-Haifei
FAQ
Q: Yiziphi izinto ezingashiselwa nge-HF-WX-FW ultrasonic wire sealing machine?
A: Umshini uklanyelwe ikakhulukazi izinto zokuqhuba ezifana nezintambo zethusi namashubhu ethusi. Izinhlelo zokusebenza ezithile zingahlolwa ngokuhlolwa kwesampula.
Q: Iyini ububanzi be-welding ububanzi balo mshini?
A: Ububanzi obujwayelekile bokushisela ngu-Φ2 ukuya ku-Φ10. Ikhono langempela lincike ekwakhiweni kwezinto ezibonakalayo kanye nezidingo zokushisela.
Q: Ingabe i-ultrasonic wire sealing idinga i-solder?
I: Cha. I-Ultrasonic welding idala-uxhumo oluqinile lwesimo ngokusebenzisa amandla okudlidliza nokucindezela ngaphandle kwempahla ye-solder eyengeziwe.
Q: Yiziphi izinzuzo zokushisela i-ultrasonic uma kuqhathaniswa ne-soldering?
A: I-Ultrasonic welding inciphisa ithonya elishisayo, iqeda ukusetshenziswa kwe-solder, futhi inikeza ukusebenza okungaguquki kokukhiqiza.
Q: Ingabe i-welding fixture ingenziwa ngezifiso?
A: Yebo. Izimpondo zokushisela nezinto ezilungiswayo zingaklanywa ngokuya ngobumo bomkhiqizo obuhlukene kanye nezidingo zokukhiqiza.
Q: Ingabe lo mshini ulungele imigqa yokukhiqiza ezenzakalelayo?
A: Yebo. Umshini ungahlanganiswa nezinhlelo ezizenzakalelayo ngokuvumelana nezidingo zokukhiqiza.
Cela Isixazululo Esenziwe Ngokwezifiso Se-Ultrasonic Wire Sealing
Uma udinga isixazululo se-ultrasonic sokuvala ucingo samashubhu ethusi, izintambo, noma izakhi zokuqhuba, sicela unikeze:
- Imidwebo yomkhiqizo
- Ukucaciswa kwezinto
- Ububanzi bentambo noma ubukhulu beshubhu
- Izidingo zokukhiqiza
Ithimba lobunjiniyela be-HAIFEI lizohlola uhlelo lwakho lokusebenza futhi likunikeze isisombululo esifanele sokushisela i-ultrasonic.
